Description
The 10A/20A/30A PWM Solar Charge Controller features a pair of screw terminals for connection to the solar panel (12V 130W or 24V 260W), a pair for connection to a 12V or 24V battery (use gel, sealed, lead or AGM models), as well as a pair of terminals for connecting the load.

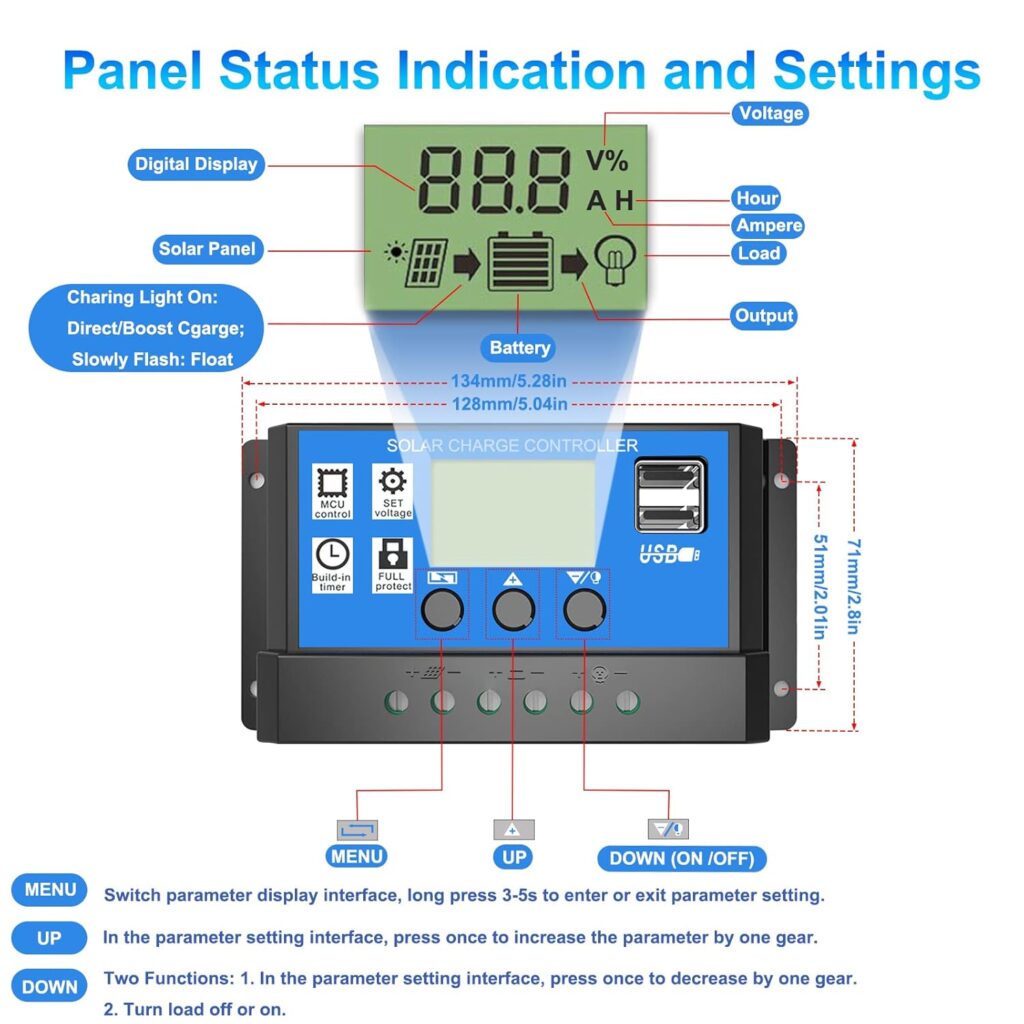

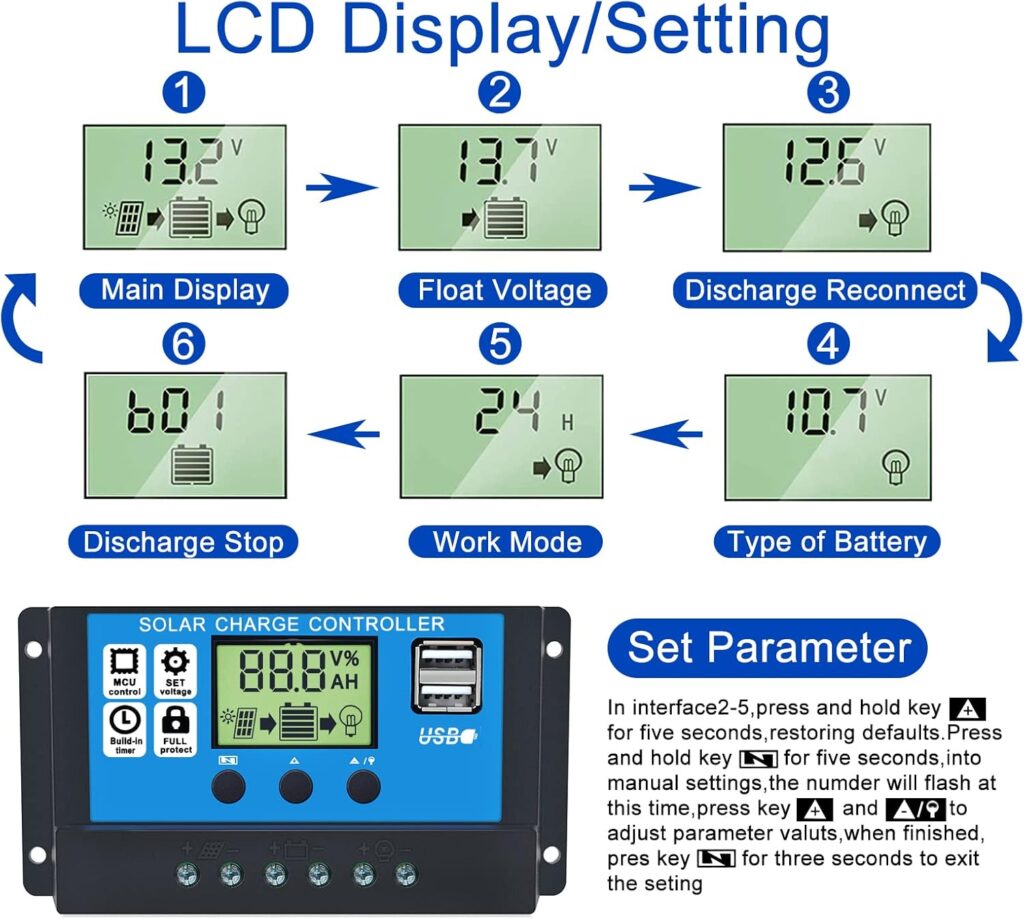

The entire operation can be monitored via the LCD panel on the device, which displays a variety of information and allows you to switch between different information using the buttons on the front: Menu (switch between different displays or press and hold to enter/exit settings), Up (press to increase the value) and Down (press this key to decrease the value and to turn on and off loads up to 120W).
