500W Modified Sine Wave DC to AC Power Inverters

cheap 500W Modified Sine Wave Power Inverter for Truck DC to AC | Warranty : 1 Year | Brand : NA | Continuous Output : 300W

DC 12V/24V to AC 110V/220V


Peak Power 500W

Insufficient Power



500W Modified Sine Wave Inverters

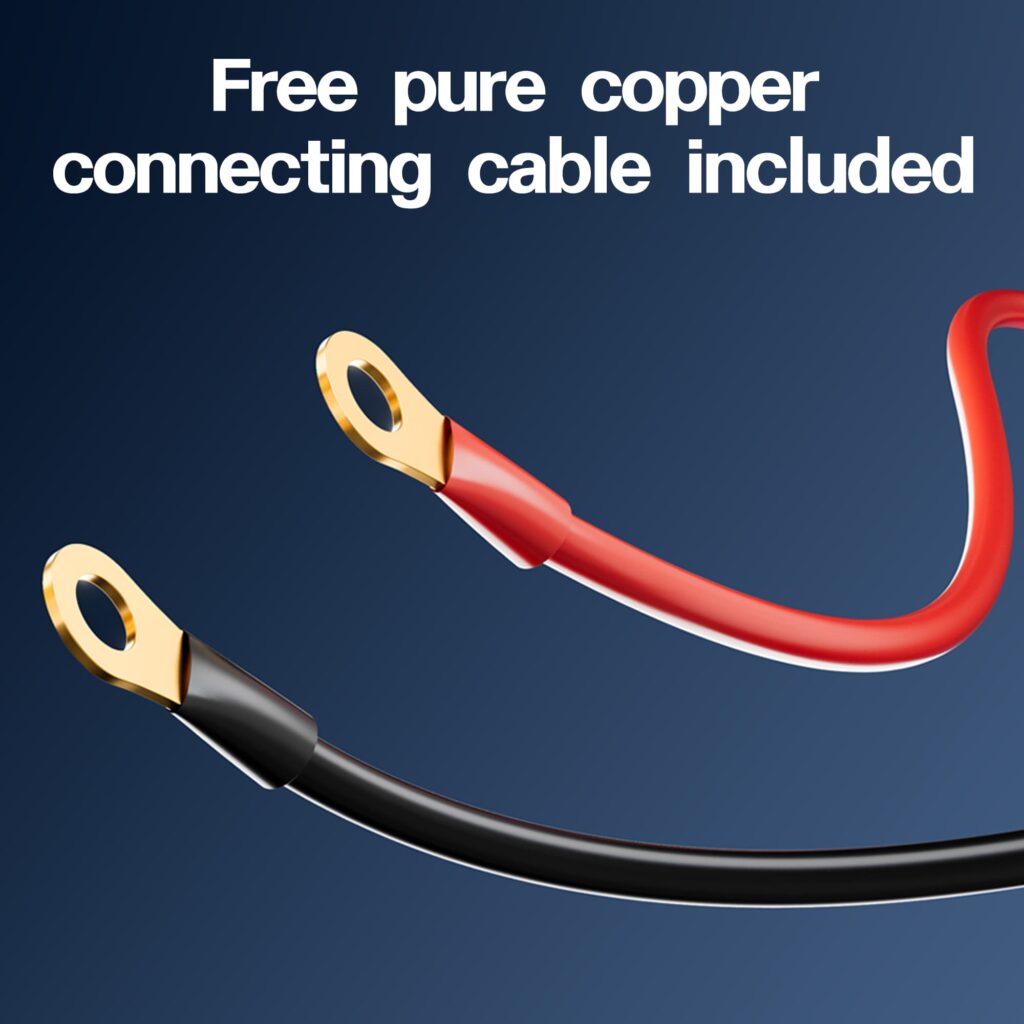

It has the advantages of being compact and lightweight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220v or 110V AC directly from the car inverters output socket. For more customize info, please contact us.

6 protections of cheap 500W Inverters with Modified Sine Wave:

1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.

2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.

3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high noting that there may be damage to the machine.

4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.

5. Reverse Protection: When the car inverter link reverse to the battery, the inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.

6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.

Inverter Model:    500B (500W)

1. Input Voltage: DC12V(10-14.8V) / DC24V(18-28V)

2. Output Voltage: AC220V / AC110V / AC120V / AC240V ±8%

3. Continuous Power output: 300W

4. Surge Power Capacity: 500W

5. Output Waveform: Modified Sine Wave

6. Frequency: 50Hz/60Hz +/-4

7. Availability Power: >90.5%

8. Low Voltage Range: <DC 9.6V / DC 18.5V

9. High Voltage Range: >DC 14.8V / DC 28.5

10. No Load current: <0.4A

11. Over Load Protection: >500W

12. Over Heat Protection: >60 Degree Centigrade

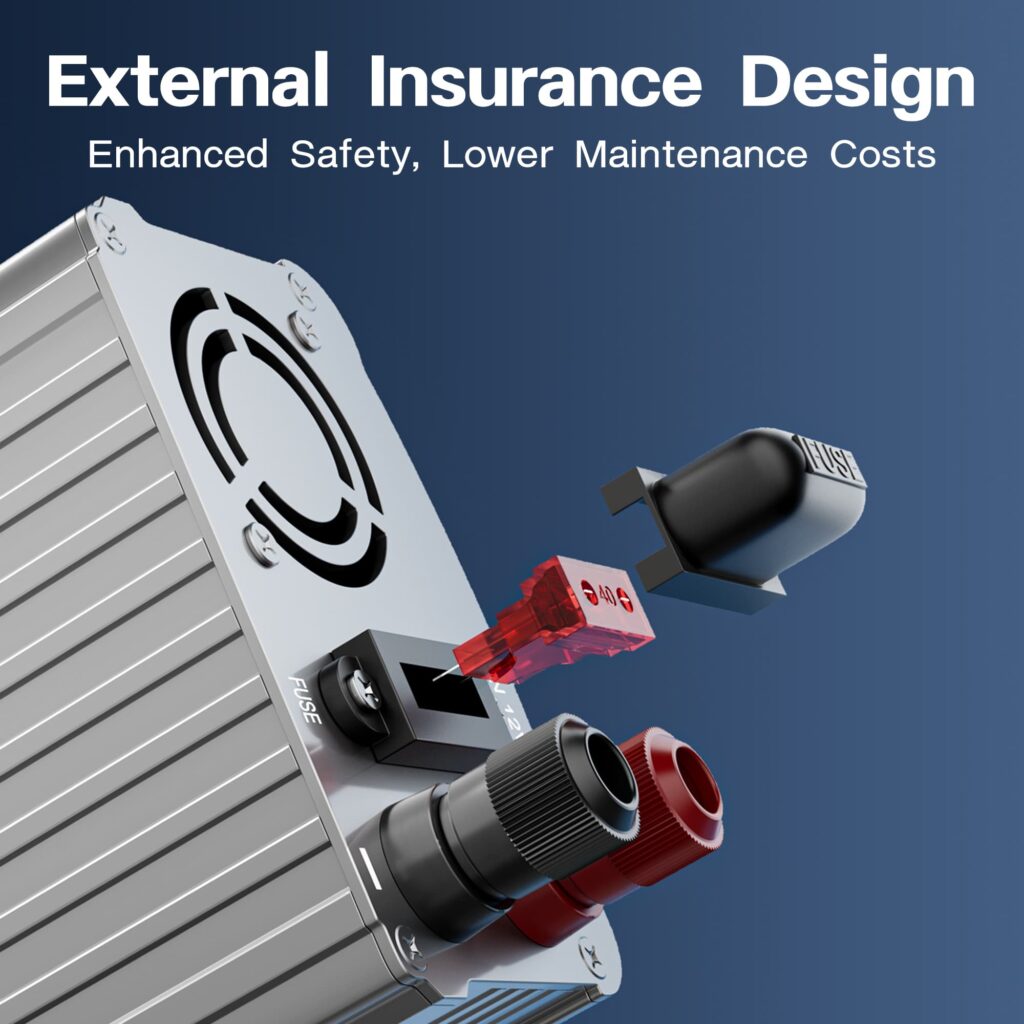

13. Fuse: 2*30A (external)

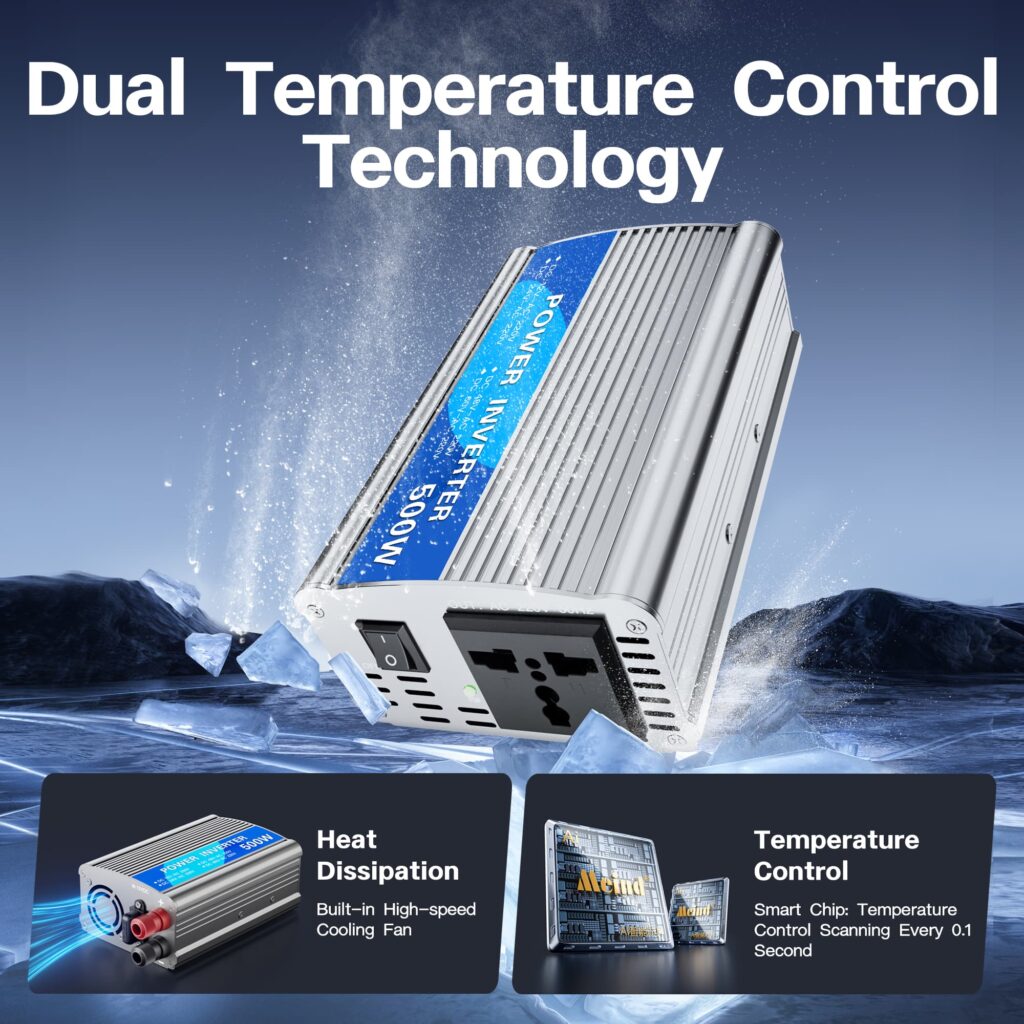

14. Cooling Fan: Yes

15. Product Packing: Gift Box

16. Product Size: 140*87*47mm

17. Product N.W/G.W: 0.67kg/0.8kg

18. Carton Packing: 40PCS/CTN

19. Carton Weight: 30kg

20. Carton Size: 51*38.8*38cm

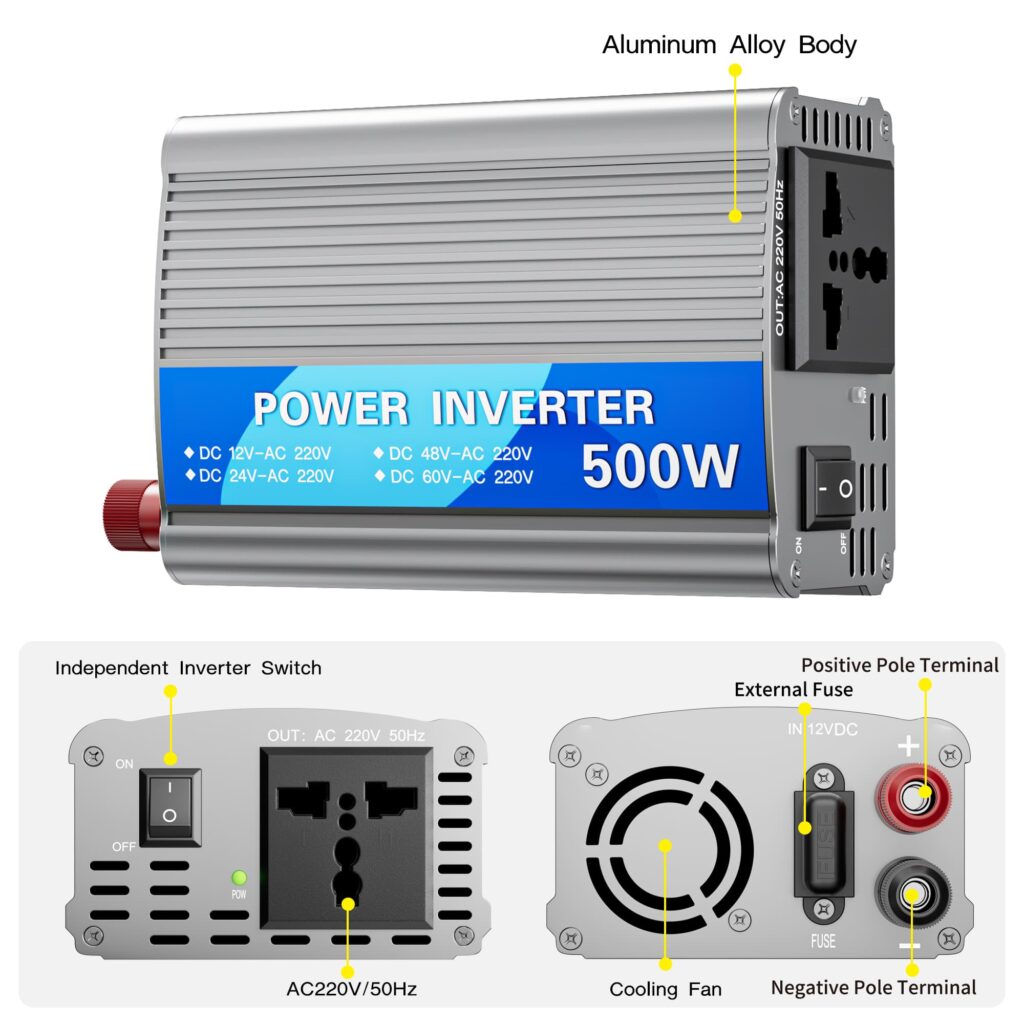

500W Inverters for Truck with Modified Sine Wave pictures:

Have you ever wondered will a modified sine wave power inverter damage my devices?

Will A Modified Sine Wave Inverter Damage My Electronics?


Product Cartification:
