DC 12V/24V to AC 110V/220V Pure Sine Wave 1000W Power Inverter with Charger LCD Display UPS

Top Selling 1500W DC to AC Pure Sine Wave Power Inverter with Charger UPS| Warranty: 1 Year | Brand: NA| Continuous Output: 1000W

DC 12V/24V to AC 110V/220V


Built-in Charger / UPS Function

USB Port

Pure Sine Wave

Surge Power 2000W

Sufficient Power Inverter



Meind Top-Quality DC 12V/24V to AC 110V/220V Pure Sine Wave 1000W Power Inverter with Built-in Charger, LCD Display, UPS, USB

It transfers DC power from the battery into clean AC power. With a peak power of 1000W and sufficient continuous 2000W, this inverter is excellent for powering sensitive equipment, loads directly from the battery.

When it comes to power failure or outside, it is the ideal solution for supplying stable true sine wave power for the computer, air pump, small motor and fridge that modified sine wave inverter cannot. This inverter is perfect for use at worksites, on boats, even in the off-grid solar system. Its digital display screen can tell real-time output voltage.

The numerous safety features including overload alarm, soft start system, DC input low or high voltage, output overload, over temperature, short circuit shut down, and high-speed temperature controlled cooling fan. This practical thing could be a great helper for your beautiful life!

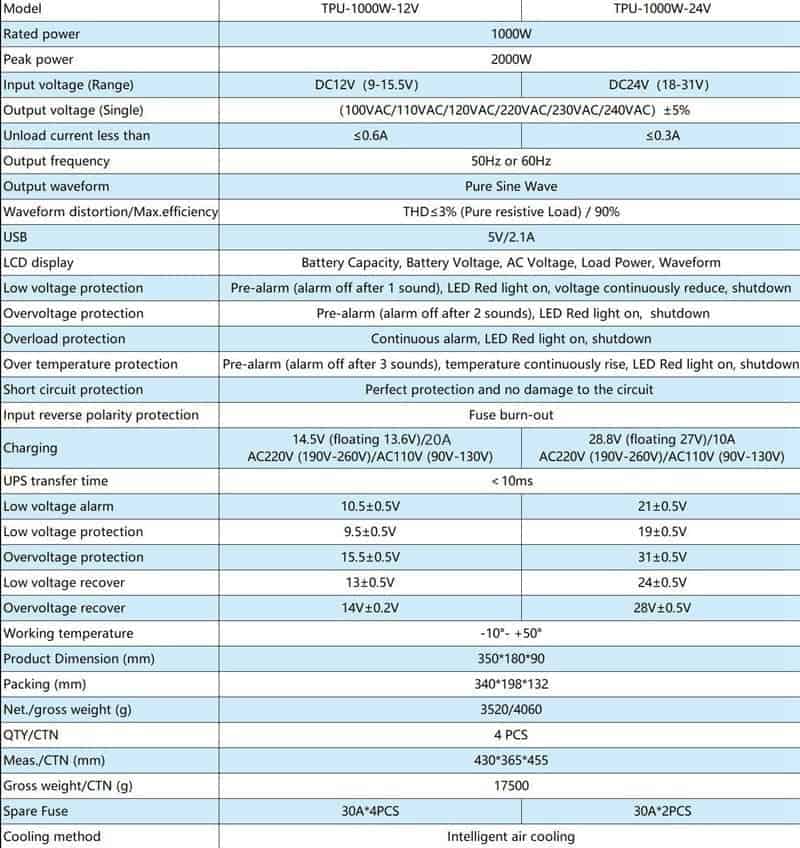

Model No. TPU-1000 (with Charger, UPS, LCD Display)
OUTPUT AC Voltage 110V or 220V AC ±8%
Continuous Output Power 1000 W
Peak Output Power 2000 W
Waveform Pure Sine Wave (THD<3%)
Frequency 50 or 60 ± 0.5 Hz
LCD Display Battery Capacity, Battery Voltage, AC Voltage, Load Power, Waveform
UPS <10ms
USB 5V/2.1A
INPUT DC Voltage 12V 24V
No Load Current ≦0.55A ≦0.28A
Voltage Range 10-15V 20-30V
Efficiency 90% 91%
Low Voltage Alarm (DC) 11V±4% 22V±4%
Charging Current 15A (13.6-14.5V) 10A (27-28.8V)
Charging Voltage 110V (90-130V) / 220V (190-260V)
PROTECTION Over Load 3300 W (Shut off output Voltage, re-power on to recover)
High Voltage Shutdown (DC) 15.5V±4% 31V±4%
Low Voltage Shutdown (DC) 10V±4% 20V±4%
Over Temperature It will shut off when temperature reaches 70℃±3℃, re-work when drops to 60℃±5℃
Output Short Circuit Shut off output voltage, re-power automatically when it is not short circuit
Battery Polarity Reverse By fuse open
ENVIRONMENT Working Temperature 0℃~+40℃
Working Humidity 20%-90% RH
PACKING Material Gift Box
Dimensions 300*160*120MM
N.W / G.W 3.5 KG / 4.1 KG
Carton Packing 4 PCS / Carton
Carton Weight / Dimensions 17.6 KG / 50*44*38.5CM
OTHERS Cooling Thermostatically cooling fan
Application Home and Office appliances, Power tools and Portable equipments, Vehicle,
Yacht and Solar power systems …etc.

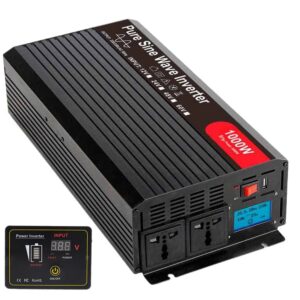

Meind 1000W Pure Sine Wave Power Inverter pictures:

What does the LCD display of this pure sine wave power inverter? It is able to show load power, DC input voltage, AC output voltage, and battery capacity, wave form and battery voltage error.
This pure sine wave power inverter is equipped with 100% pure copper terminals, designed for large DC current from the battery. It is also covered by ABS material, for protection from high temperature.

We can make this pure sine wave power inverter with many types of sockets (US sockets) for you:

We design the motherboard of this pure sine wave inverter with isolation insulation, the transformer with pure copper wire, imported explosion-proof capacitor, thickened aluminum radiator, thickened MOS block and high-temperature pure copper filter coil, to emphasize quality and safety. It conforms to CE and RoHS.

Its high-voltage holding test result Bat-PG:500VAC, Bat-AC:1.5KVAC, AC-FG:1.5KVAC. Its insulation resistance test results Bat-PG, AC-FG:100M Ohms/500VDC/25℃/70%RH. It is also vibration resistance.

Welcome to check our other inverters: Modified Sine Wave Inverter, Pure Sine Wave Inverter


Product Cartification:
