Meind Top-Quality DC 12V/24V to AC 110V/220V Pure Sine Wave 1500W Power Inverter with Built-in Charger, LCD Display, UPS, USB
It transfers DC power from the battery into clean AC power. With a peak power of 300W and sufficient continuous 1500W, this inverter is excellent for powering sensitive equipment, loads directly from the battery.
When it comes to power failure or outside, it is the ideal solution for supplying stable true sine wave power for the computer, air pump, small motor and fridge that modified sine wave inverter cannot. This inverter is perfect for use at worksites, on boats, even in the off-grid solar system. Its digital display screen can tell real-time output voltage.
The numerous safety features including overload alarm, soft start system, DC input low or high voltage, output overload, over temperature, short circuit shut down, and high-speed temperature controlled cooling fan. This practical thing could be a great helper for your beautiful life!

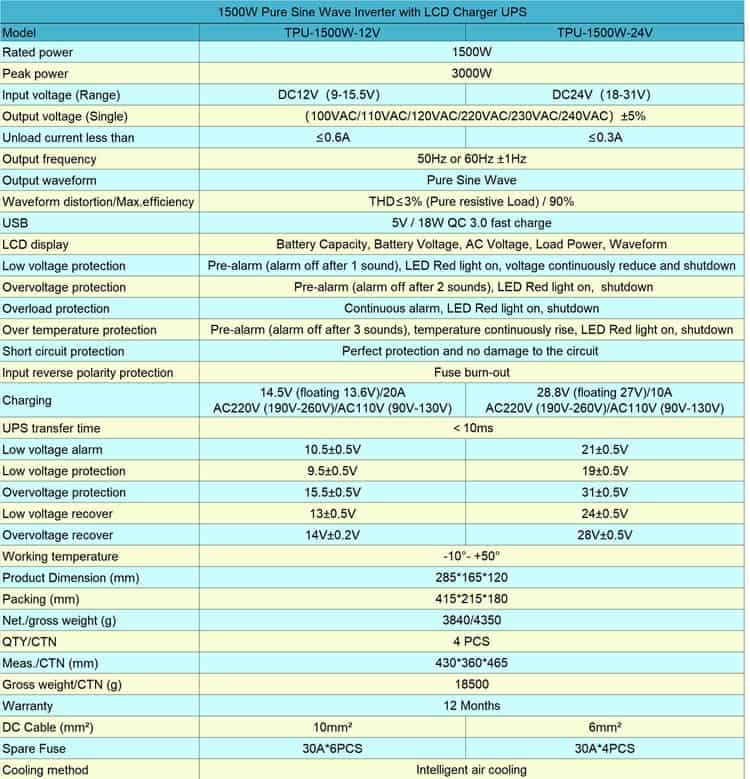

|Model No.||TPU-1500 (with Charger, UPS, LCD Display)|
|OUTPUT||AC Voltage||110V or 220V AC ±8%|
|Continuous Output Power||1500 W|
|Peak Output Power||3000 W|
|Waveform||Pure Sine Wave (THD<3%)|
|Frequency||50 or 60 ± 0.5 Hz|
|LCD Display||Battery Capacity, Battery Voltage, AC Voltage, Load Power, Waveform|
|No Load Current||≦0.55A||≦0.28A|
|Low Voltage Alarm (DC)||11V±4%||22V±4%|
|Charging Current||15A (13.6-14.5V)||10A (27-28.8V)|
|Charging Voltage||110V (90-130V) / 220V (190-260V)|
|PROTECTION||Over Load||3300 W (Shut off output Voltage, re-power on to recover)|
|High Voltage Shutdown (DC)||15.5V±4%||31V±4%|
|Low Voltage Shutdown (DC)||10V±4%||20V±4%|
|Over Temperature||It will shut off when temperature reaches 70℃±3℃, re-work when drops to 60℃±5℃|
|Output Short Circuit||Shut off output voltage, re-power automatically when it is not short circuit|
|Battery Polarity Reverse||By fuse open|
|Working Humidity||20%-90% RH|
|N.W / G.W||3.8 KG / 4.4 KG|
|Carton Packing||4 PCS / Carton|
|Carton Weight / Dimensions||18.5 KG / 50*44*38.5CM|
|OTHERS||Cooling||Thermostatically cooling fan|
|Application||Home and Office appliances, Power tools and Portable equipments, Vehicle,
Yacht and Solar power systems …etc.
Meind 1500W Pure Sine Wave Power Inverter pictures:
What does the LCD display of this pure sine wave power inverter? It is able to show load power, DC input voltage, AC output voltage, and battery capacity, wave form and battery voltage error.
This pure sine wave power inverter is equipped with 100% pure copper terminals, designed for large DC current from the battery. It is also covered by ABS material, for protection from high temperature.
We can make this pure sine wave power inverter with many types of sockets (US sockets) for you:
We design the motherboard of this pure sine wave inverter with isolation insulation, the transformer with pure copper wire, imported explosion-proof capacitor, thickened aluminum radiator, thickened MOS block and high-temperature pure copper filter coil, to emphasize quality and safety. It conforms to CE and RoHS.
Its high-voltage holding test result Bat-PG:500VAC, Bat-AC:1.5KVAC, AC-FG:1.5KVAC. Its insulation resistance test results Bat-PG, AC-FG:100M Ohms/500VDC/25℃/70%RH. It is also vibration resistance.
