600W DC 12V/24V to AC 110V/220V Pure Sine Wave Power Inverter with Remote Controller

High Quality 600W Pure Sine Wave Power Inverter DC to AC | Warranty : 1 Year | Brand : Customized| Continuous Output : 600W

DC 12V/24V to AC 110V/220V

50Hz/60Hz

Surge Power 1200W

Pure Sine Wave

Sufficient Power Inverter


Description

Description

600W Power Inverter Pure Sine Wave AC converter Car Inverter

600W Sinusoidal Power Inverter has the advantages of being compact and lightweight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. It can supply 220v or 110V AC directly from its AC output socket. The wire/wireless remote controller is able to be equipped with this power inverter.

For more customize info, please get in touch with us.

6 protections of Meind 600W Pure Sine Wave Power Inverter:

1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.

2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.

3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note that there may be damage to the machine.

4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.

5. Reverse Protection: When the car inverter link reverses to the battery, the inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.

6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.

Model TP-600W-12V TP-600W-24V TP-600W-48V
Rated power 600W
Peak power 1200W
Input voltage (Range) DC12V(9-15.5V) DC24V(18-31V) DC48V(38-61V)
Output voltage (Single) (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5%
Unload current less than ≤0.4A ≤0.2A ≤0.2A
Output frequency 50Hz or 60Hz
Output waveform Pure Sine Wave
Waveform distortion THD≤3% (Pure resistive Load) / 90%
USB 5V/2.1A /
Max.efficiency 90%
Low voltage protection Pre-alarm (alarm off after 1 sound), LED Red light on, voltage continuously reduce and shutdown
Overvoltage protection  Pre-alarm (alarm off after 2 sounds), LED Red light on,  shutdown
Overload protection Continuous alarm, LED Red light on, shutdown
Over temperature protection Pre-alarm (alarm off after 3 sounds), temperature continuously rise, LED Red light on, shutdown
Short circuit protection Perfect protection and no damage to the circuit
Input reverse polarity protection Fuse burn-out
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 9.5±0.5V 19±0.5V 38±1V
Overvoltage protection 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V
Overvoltage recover 14V±0.2V 28V±0.5V 54V±1V
Working temperature -10°- +50°
Product Dimension (mm) 210*107*62
Mounting Size (mm) 221*48
Product Lable Size (mm) 39.5*210
Packing (mm) 285*150*66
Net./gross weight (g) 960/1180
QTY/CTN 15 PCS
Meas./CTN (mm) 470*300*365
Gross weight/CTN (g) 18600
Warranty 12 Months
DC Cable (mm²) 6 4 2.5
Spare Fuse 30A*2PCS 30A*1PCS 20A*1PCS
Cooling method Intelligent air cooling

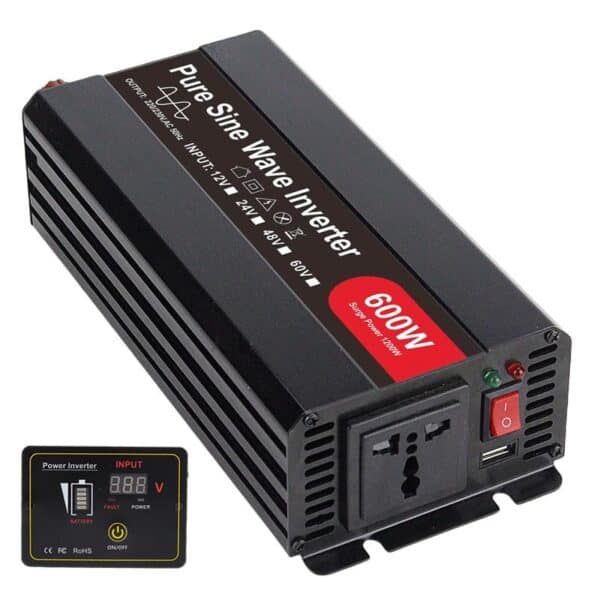

600W Pure Sine Wave Power Inverter pictures:
